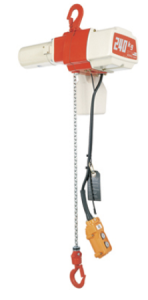

ED Series
Features
- Load-bearing parts are only stressed to 20% of their limit at rated capacity
- Abrasion and corrosion resistant load chain is made from heat-treated alloy steel for high, uniform strength
- Corrosion Resistant chain for longer life
- Forged carbon steel hook design will not fracture under excessive load
- Forged carbon steel hook design will not fracture under excessive load
- Double braking system includes both mechanical and regenerative brakes for added safety
- Spur gears immersed in oil bath ensure quiet, smooth operation and long life
- Unique chain guide design for smooth chain travel
- Slip clutch protects the hoist against over travel and overload damage
- 360° swivel bottom hook with built-in bearing, for easy positioning
- Weathertight construction resists dust and water
- Variable high speeds up to 44 ft/min – use the best lift speed for the job
- Compact and lightweight design is ideal for use in close quarters – small enough to be portable
- Low voltage pendant control for your safety
- Tested to 125% of rated capacity

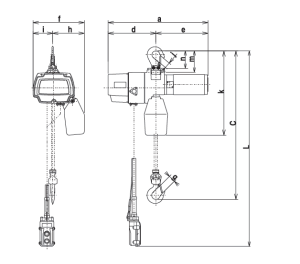

| Dimension (mm) | |||||||||||||
| Capacity | Model | C | a | d | e | f | h | i | g | j | k | m | n |
| 100kg | EDL10S | 300 | 371 | 187 | 184 | 200 | 120 | 80 | 27 | 25 | 340 | 92 | 73 |
| 240kg | EDL24S | 325 | 428 | 205 | 223 | 219 | 135 | 84 | 27 | 25 | 362 | 92 | 73 |
| 480kg | EDL48S | 520 | 428 | 205 | 223 | 229 | 155 | 74 | 24 | 24 | 454 | 149 | |
| 100kg | EDL10ST | 300 | 371 | 187 | 184 | 200 | 120 | 80 | 27 | 25 | 340 | 92 | 73 |
| 240kg | EDL24ST | 325 | 428 | 205 | 223 | 219 | 135 | 84 | 27 | 25 | 362 | 92 | 73 |
| 480kg | EDL48ST | 520 | 428 | 205 | 223 | 229 | 155 | 74 | 24 | 24 | 454 | 149 | |
| 100kg | EDCL10SD | 925 | 371 | 187 | 187 | 200 | 120 | 80 | 27 | 25 | 340 | 92 | 73 |
| 240kg | EDCL24SD | 955 | 428 | 205 | 223 | 219 | 135 | 84 | 27 | 25 | 362 | 92 | 73 |
<td”>Load Chain Code
| Headroom (in) | |||||||||||||||
| Specifications | Plain Trolley | Geared Trolley | |||||||||||||
| Capacity (tonne) | Model | Standard Lift (ft) |
Max Lift (ft) |
Lift Speed (ft/min) |
Hoist Motor H.P. |
Rated Current 115V (amps) |
Hook Mount Only |
Hook | Lug | Hook2 | Lug2 | Load Chain Falls |
Ship Weight (lbs) |
Weight per additional 5ft of lift (lbs) |
|
| 100kg | EDL10S | 10 | 20 | 43 | 0.4 | 5 | 12 | — | 9 | — | — | KED040 | 1 | 25 | 2 |
| 240kg | EDL24S | 10 | 100 | 44 | 0.8 | 10 | 13 | — | 10 | — | — | KED040 | 1 | 36 | 2 |
| 480kg | EDL48S | 10 | 50 | 22 | 0.8 | 10 | 21 | 23.4 | — | 24 | — | KED040 | 2 | 49 | 4 |
| 100kg | EDL10ST | 10 | 20 | 43/10 | 0.4 | 5 | 12 | — | 9 | — | — | KED040 | 1 | 27 | 2 |
| 240kg | EDL24ST | 10 | 65 | 44/10 | 0.8 | 10 | 13 | — | 10 | — | — | KED040 | 1 | 37 | 2 |
| 480kg | EDL48ST | 10 | 32 | 22/6.5 | 0.8 | 10 | 21 | 23.4 | — | 24 | — | KED040 | 2 | 49 | 4 |
| 100kg | EDCL10SD | 6 | 6 | 43/10 | 0.4 | 5 | 36 | — | TBD | — | — | KED040 | 1 | 31 | — |
| 240kg | EDCL24SD | 6 | 6 | 44/10 | 0.8 | 10 | 38 | — | TBD | — | — | KED040 | 1 | 45 | — |
