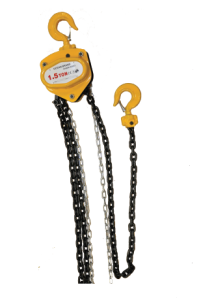

OceanSide Manual Chain Hoist
Ocean Side Manual Chain Hoist comes with a standard lift of 10 or 20 ft. Specific lengths of lift are available upon request.

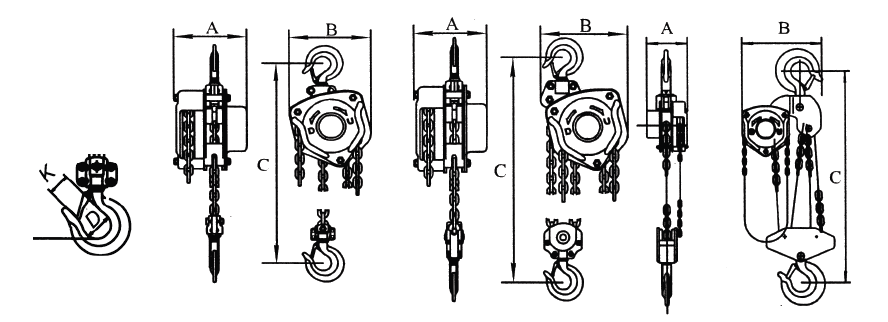

| Dimensions (mm) | ||||||
| Part No. | Number of Falls |
A | B | C | D | K |
| 6-0.5TCB3 | 1 | 131 | 127 | 270 | 35 | 30 |
| 6-1TCB3 | 1 | 140 | 158 | 317 | 35.5 | 28 |
| 6-1.5TCB3 | 1 | 161 | 174 | 399 | 45 | 36 |
| 6-2TCB3 | 1 | 161 | 187 | 414 | 42.5 | 33.5 |
| 6-3TCB3 | 2 | 161 | 199 | 465 | 50 | 40 |
| 6-5TCB3 | 2 | 186 | 253 | 636 | 64 | 50 |
| 6-10TCB3 | 4 | 207 | 398 | 798 | 85 | 64 |
