Mine Maxx
Application

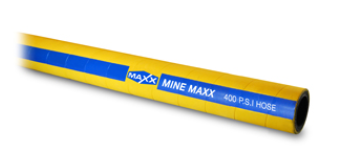

MINE MAXX is a premium heavy duty 400 PSI air hose designed for the most harsh mining, construction and industrial applications. This mandrel built hose is designed with an extra heavy duty cover to give maximum resistance to abrasion.
Construction
Tube- Smooth black oil mist resistant synthetic rubber
Reinforcement- Multiple layers of high tensile spirally wound synthetic yarn
Cover- Yellow weather, cut and abrasion resistant synthetic rubber
Branding- Blue Stripe MINE MAXX 400 PSI HOSE
Temperature Range
-40°C to +82°C (-40°F to +180°F)
Standard Lengths
50ft/ 100ft
| Part No. | I.D Inches | O.D. Inches | Max W.P PSI | Approx. Wt. Per. Ft. LBS |
| ESY-0.5 | 0.50 | 0.95 | 400 | 0.31 |
| ESY-0.75 | 0.75 | 1.26 | 400 | 0.41 |
| ESY-1 | 1.00 | 1.54 | 400 | 0.61 |
| ESY-1.25 | 1.25 | 1.89 | 400 | 0.81 |
| ESY-1.5 | 1.50 | 2.12 | 400 | 0.91 |
| ESY-2 | 2.00 | 2.63 | 400 | 1.2 |
| ESY-3 | 3.00 | 3.70 | 400 | 2.37 |
| ESY-4 | 4.00 | 4.80 | 400 | 3.3 |
